TECHNOLOGY

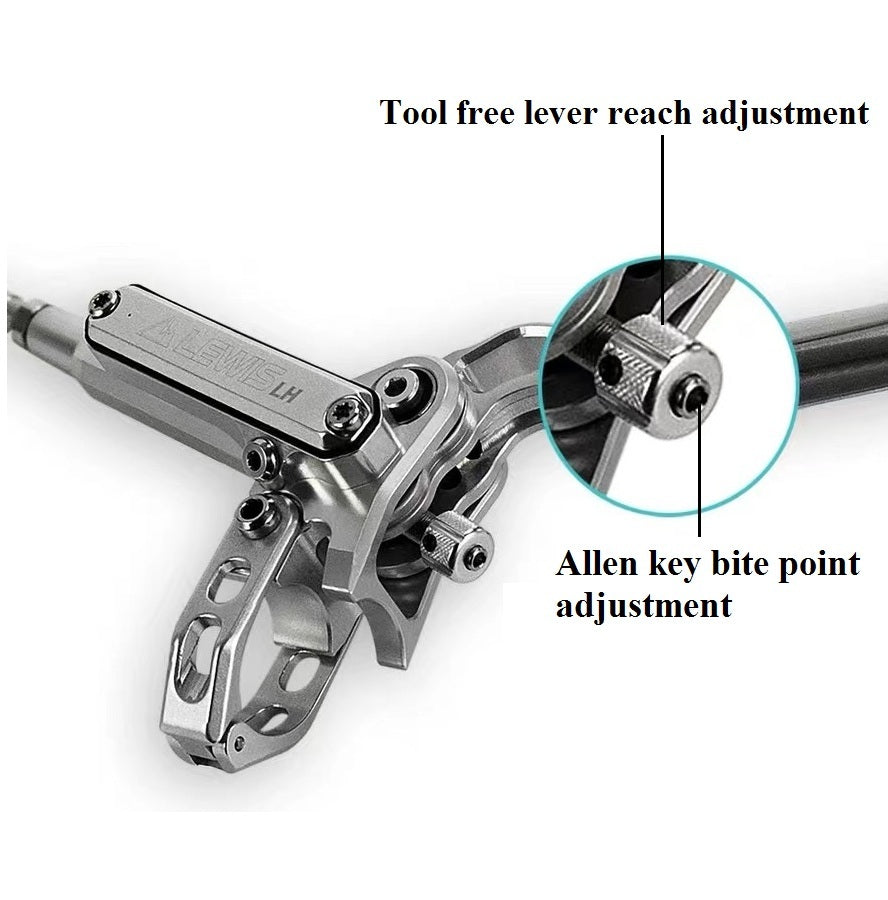

Bite Point & Lever Reach Adjustment
Lever reach(tool free), bite point(with allen key)
Lewis' patented technology for dual adjustment of lever reach & bite point allows you to customize the feel to your preference for superior performance out on the trails.

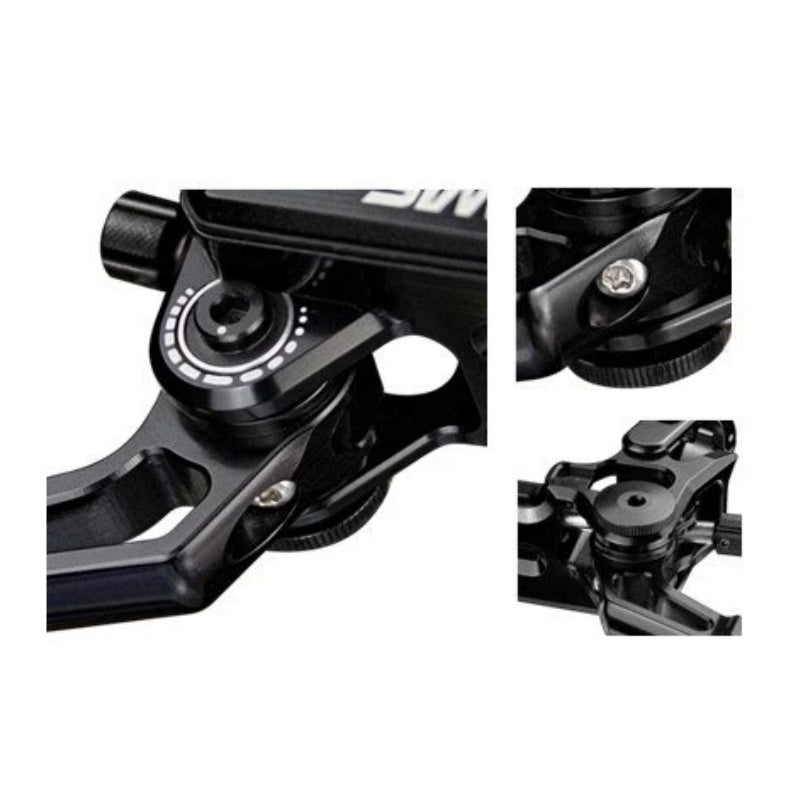

Free Leverage Ratio Adjustment
Loosen the lever ratio locking screw and use the bottom lever ratio adjustment dial to adjust the lever ratio. Tighten the locking screw after adjustment.
DO NOT OVERTIGHTEN
The smaller the parts of the scale the pointer points to the softer the lever will feel, and the larger markings on the scale will result in a harder lever feel.
Please adjust as appropriate according to individual needs and preference.
Anti-leak oil system
Riders can pull the oil hose out from the lever directly and no oil leaks with this anti-leak system. It is helpful for quick internal routing.
Lewis LHT/LH4 Bleeding Video
Please refer to the Bleeding video for LH4/LHT and make sure to follow the correct operating steps.
Lewis Brake Oil Hose Cutting Tutorial Video
Please refer to the installation instructions for brake hose fittings of different models if you need to cut the hose.
